In This Tutorial:

Understanding How DNS Works

Domain Name System (DNS) records are used to provide specific, important details for your domain. The simplest way to understand how DNS records work is to use the analogy of a phone book listing. For instance, when you want to call someone, you look in the phone book for their name. The information listed under their name, will include their contact details. Since you want to call them, you would refer to their listed information to find the phone number to dial. Since the phone book contains records in a standardized format, you can deduce from the details of their listing which number to call to reach them.

This behavior is very similar to that of how your computer, domain name servers, and DNS records are utilized. Domain name servers (like the phone book) store DNS records (like names, phone numbers, and addresses) which are referenced by domain (name listing). Similar to how you would use the formatting of the phone book listing to decipher the phone number from, say, the home address, the kind of DNS record and the information contained in the DNS record, provide sufficient data to route your domain's (website, email, etc) traffic accordingly.

Maintaining Your DNS Zone

Before You Begin

Viewing DNS Records

cPanel provides the ability to view your DNS Zone file, which contains your DNS records.

  1. Fill in the highlighted fields and click Log in

    Log into your cPanel. Be sure to log in with the cPanel user that owns the domain you are maintaining DNS records for.

  2. Click on Zone Editor icon

    Locate the Domains section of cPanel and click on the Zone Editor icon.

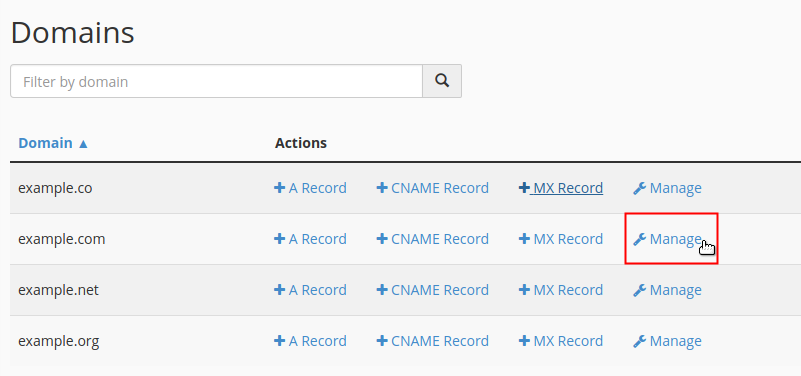

  3. Click Manage link next to domain

    Find your domain in the list under the Domain heading. Under the Actions heading, click on the Manage link that corresponds with the domain you want to maintain DNS for.

View Records by Type

The Zone Editor is capable of displaying up to 100 items per page. For easier viewing, you can filter the DNS records displayed.

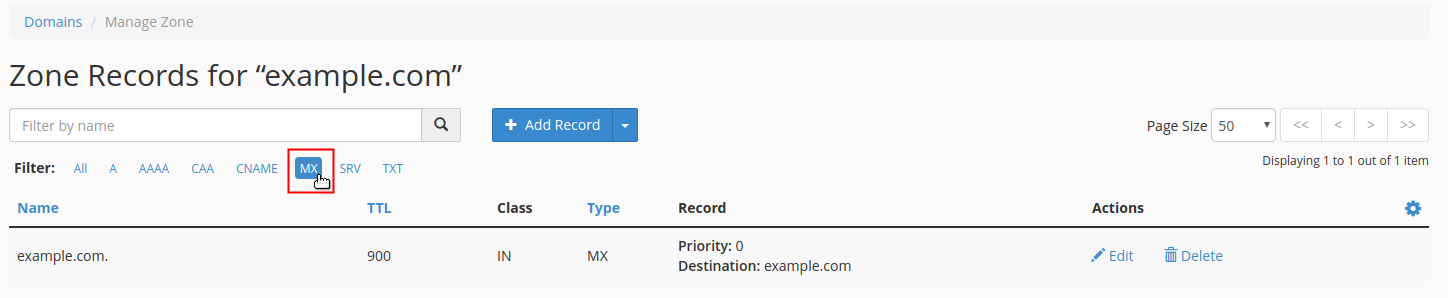

  • Click record type to display filter

    On the Manage Zone page, click a record type from the Filter: list. Each page will only display the records for the specific type you selected.

View Records by Search Results

cPanel's Zone Editor also has the ability to search and display the filtered search results.

  • Type name of record in search box to display results

    On the Manage Zone page, type the name of the record you would like to view into the search box that reads: Filter by name.

Adjust Page Size

Depending on the number of DNS records that your zone file contains, you may need to expand or view another page of DNS records.

  • Click Page Size drop-down menu and select size

    On the Manage Zone page, click the Page Size drop-down menu and click to select a higher quantity. The page will refresh and display the number of records you selected.

Navigating Through a Large Zone File

If the amount of records in your zone file is higher than the maximum (100) page size, you will not be able to view all your records on one page. However, you can navigate between pages to view your records as needed.

  • Click right/left arrows to navigate each page

    On the Manage Zone page, click the or the icon to navigate back and forward (respectively) through the pages of your DNS zone.

  • Click left/right double arrows to skip to first and last pages

    Clicking on the or the icon will navigate you to the first and last pages respectively.

Adding DNS Records

The Zone Editor can be utilized for creating common DNS records, like, A, CNAME, and MX records. Through the Manage link, you can add custom DNS records, such as, CAA, TXT, AAAA, and SRV records. The instructions below provide the general steps to create DNS records.

  1. Fill in the highlighted fields and click Log in

    Log into your cPanel. Be sure to log in with the cPanel user that owns the domain you are creating the DNS record for.

  2. Click on Zone Editor icon

    Locate the Domains section of cPanel and click on the Zone Editor icon.

  3. Click Manage link next to domain

    Find your domain in the list under the Domain heading. Under the Actions heading, click on the Manage link that corresponds with the domain you want to create the record for.

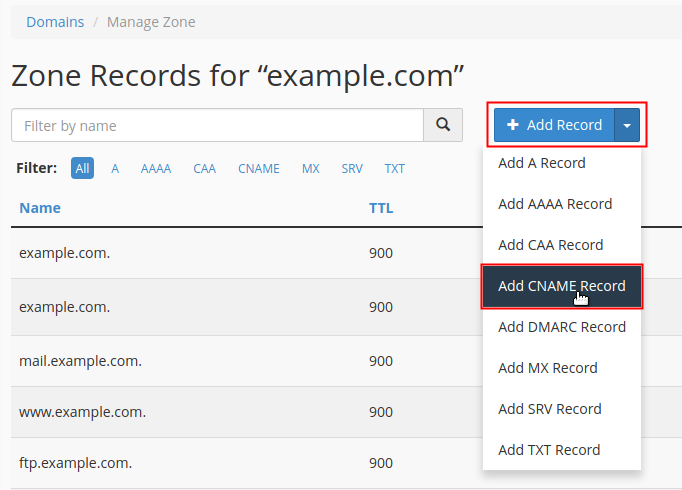

  4. Click +Add Record drop-down menu and select record

    Click the +Add Record drop-down menu button and select the option for the record you would like to add.

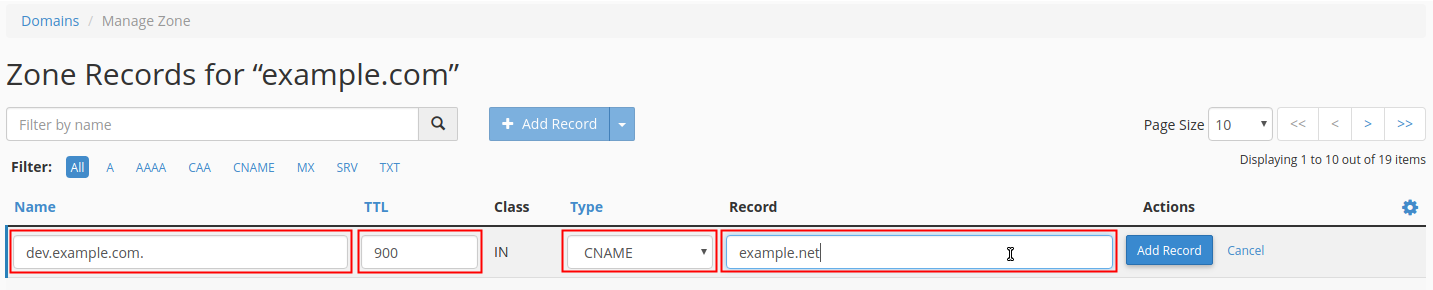

  5. Enter details for record into fields

    Notice the page now includes fields to enter the details for the new record at the top of the list. Enter the details of the record into the appropriate fields.

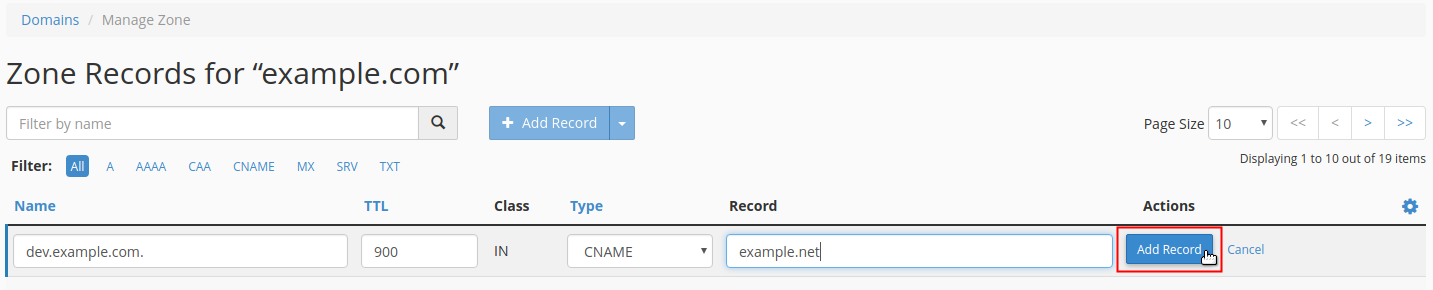

  6. Click Add Record button to save new record

    To save your new record, click the Add Record button.

Deleting DNS Records

Deleting a DNS record for your domain is simple. Follow the steps below to learn how to do this using the Zone Editor within cPanel.

  1. Fill in the highlighted fields and click Log in

    Log into your cPanel. Be sure to log in with the cPanel user that owns the domain you are deleting the DNS record from.

  2. Click on Zone Editor icon

    Locate the Domains section of cPanel and click on the Zone Editor icon.

  3. Click Manage link next to domain

    Find your domain in the list under the Domain heading. Under the Actions heading, click on the Manage link that corresponds with the domain you want to delete the record from.

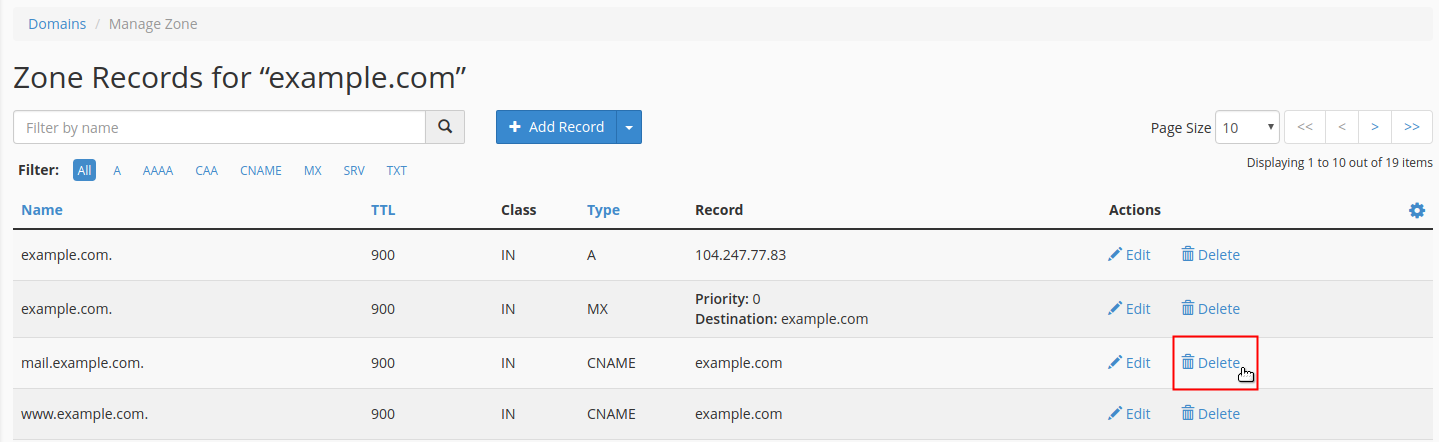

  4. Click Delete link next to domain record to delete

    Review the list of records, find the record you want to delete, and click the Delete link next to the corresponding record.

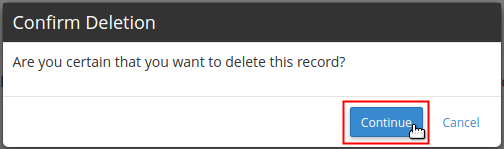

  5. Read warning and click Continue to confirm deletion

    A pop-up dialog box appears and asks "Are you certain that you want to delete this record?" Simply click the Continue button to confirm and proceed to delete the record.

Reset a DNS Zone

When you add a domain to cPanel, a standard set of DNS records is automatically created. If you add/delete DNS records and want to revert back to the original DNS, you can Reset the DNS Zone. This will remove all your custom DNS records and create the standard records for your domain. The instructions below provide the steps to reset your DNS zone file.

  1. Fill in the highlighted fields and click Log in

    Log into your cPanel. Be sure to log in with the cPanel user that owns the domain you are resetting the DNS zone for.

  2. Click on Zone Editor icon

    Locate the Domains section of cPanel and click on the Zone Editor icon.

  3. Click Manage link next to domain

    Find your domain in the list under the Domain heading. Under the Actions heading, click on the Manage link that corresponds with the DNS Zone you want to reset.

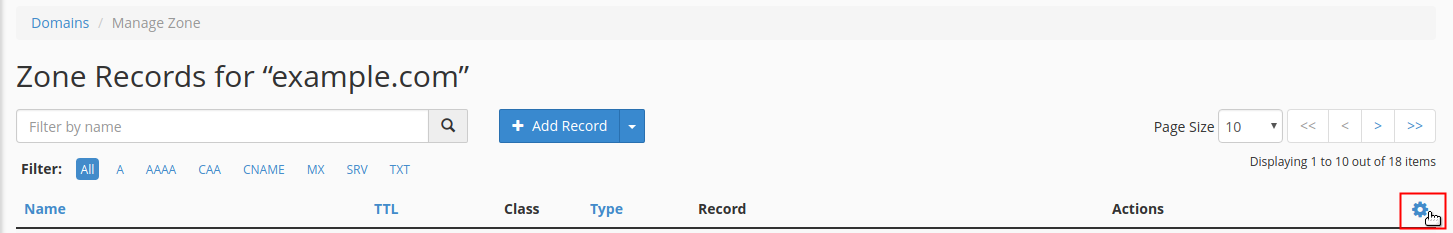

  4. Click cog button drop-down menu

    Click on the button, located on the far right, in the heading section.

  5. Select Reset Zone from drop-down menu Click Reset Zone from the drop-down menu.

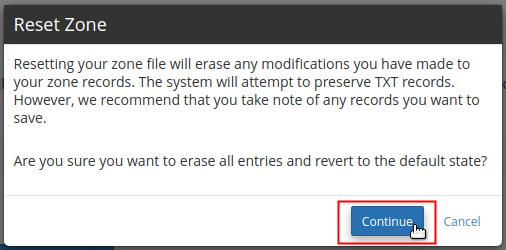

  6. Read warning and click Continue button to reset zone

    A pop-up dialog box is displayed and asks "Are you sure you want to erase all entries and revert to the default state?" Click on the Continue button to confirm and proceed to reset the zone.
